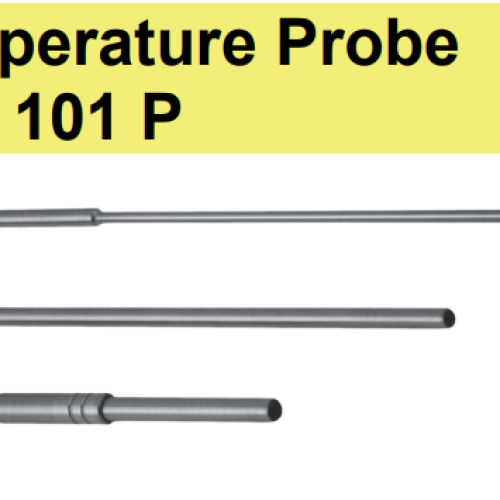

Đầu dò nhiệt độ Senseca GTF101P-P-3L-B-MB2-D60-0150-L03-T , GTF101P-P-3L-B-MB2-D40-0100-L03-T Senseca Temperature Probe GTF 101 P
-
61
-
Giá: Liên hệ
-
Đầu dò nhiệt độ Senseca GTF101P-P-3L-B-MB2-D60-0150-L03-T , GTF101P-P-3L-B-MB2-D40-0100-L03-T Senseca Temperature Probe GTF 101 P
GTF101P-P-3L-B-MB2-D60-0150-L03-T
Temperature probe, customized
Sensor element: Pt100
Connection sensor element: 3-wire
Accuracy: DIN class B
Measuring range: -200 ... +400 °C
Probe diameter Ø: 6 mm rigid
Installation length: 150 mm
Cable and length: 3 m Teflon cable, -200 ... +250 °C
Connection: Loose ends with wire end ferrules
Brand: SENSECA
Cable sleeve: Ø5 x max. 50 mmGTF101P-P-3L-B-MB2-D40-0100-L03-T
Temperature probe, customized
Sensor element: Pt100
Connection sensor element: 3-wire
Accuracy: DIN class B
Measuring range: -200 ... +400 °C
Probe diameter Ø: 4 mm rigid
Installation length: 100 mm
Cable and length: 3 m Teflon cable, -200 ... +250 °C
Connection: Loose ends with wire end ferrules
Brand: SENSECA
Cable sleeve: Ø5 x max. 50 mm
Đầu dò nhiệt độ Senseca GTF101P-P-3L-B-MB2-D60-0150-L03-T , GTF101P-P-3L-B-MB2-D40-0100-L03-T Senseca Temperature Probe GTF 101 P
The GTF 101 is a temperature probe modified completely according to customer specifications. The GTF 101 is very robust and therefore especially suited for application at high permanent temperatures in air, gases liquids or aggressive environments.
The measurement is done by means of resistance temperature sensors (Pt100 or Pt1000)
Technical data

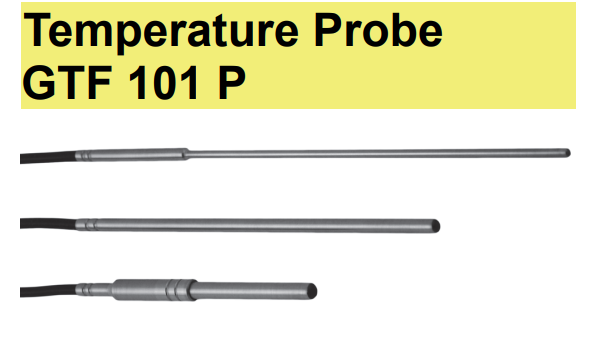

(Dữ liệu kỹ thuật - tương ứng với dòng sản phẩm GTF101P ở Hình 2)
| Thông số (Parameter) | Chi tiết (Detail) |
| Sensor element |
Pt100 (2- / 3- or 4-wire) Pt1000 (2- / 3- or 4-wire) |
| Measuring range MB |
MB 1: -50..+400 °C MB 2: -200..+400 °C MB 3: -200..+600 °C MB 4: -50..+850 °C |
| Probe diameter D |
3 mm, 4 mm, 5 mm, 6 mm, 8 mm other diameters (e.g. 1.6 mm, 2.2 mm) upon request |
| Fitting length EL |
50 mm, 100 mm, 150 mm, 250 mm, 500 mm, 1000 mm, 1500 mm other fitting lengths possible |
| Cable sleeve |
for probe diameter D 3 mm, 4 mm, 5 mm, 6 mm, 8 mm: cable sleeve Ø 5 mm x 50 mm additional to fitting length for probe diameter D 6 mm and MB3 or MB4: cable sleeve Ø 8 mm x 35 mm and diminution Ø 5 mm x 17 mm additional to fitting length |
| Note | The temperature of the cable sleeve must not exceed the permitted temperature of the cable |
| Accuracy |
DIN class B, DIN class A, 1/3 DIN class B, 1/10 DIN class B |
| Tube material | V4A |
| Cable | 1 m (standard), loose ends |
| - PVC cable | up to max. 105 °C |
| - Silicone cable | up to max. 200 °C (standard) |
| - Teflon cable | up to max. 250 °C |
| - Glass silk cable | up to max. 400 °C |
Ordering code - GTF101P
Bảng mã đặt hàng (Ordering code)
| No. | Item | Code | Description | Note |
| 1. | Sensor element | P | Pt100 | |
| T | Pt1000 | |||
| 2. | Connection of sensor element | 2L | 2-wire | |
| 3L | 3-wire | |||
| 4L | 4-wire | |||
| 3. | Accuracy | A | DIN class A | only with MB1 |
| B | DIN class B (Standard) | |||
| D | 1/3 DIN class B | only with MB1, MB2, MB3 | ||
| Z | 1/10 DIN class B | only with MB1 and Pt100 | ||
| 4. | Measuring range MB | MB1 | -50..+400 °C | |
| MB2 | -200..+400 °C | |||
| MB3 | -70..+600 °C | |||
| MB4 | -50..+850 °C | only with Pt100 | ||
| 5. | Probe diameter D | D30 | 3.0 mm | |
| D40 | 4.0 mm | |||
| D50 | 5.0 mm | |||
| D60 | 6.0 mm | |||
| D80 | 8.0 mm | not with MB4 | ||
| Dxx | other Ø in mm (upon request) | |||
| 6. | Fitting length EL | 0050 | 50 mm | |
| 0100 | 100 mm | |||
| 0150 | 150 mm | |||
| 0250 | 250 mm | |||
| 0500 | 500 mm | |||
| 1000 | 1000 mm | |||
| 1500 | 1500 mm | |||
| xxxx | any EL in mm (e.g.: 0700 = 700 mm) | |||
| 7. | Cable length L | L01 | 1 m (standard) | |
| Lxx | desired length in m (e.g. L03 = 3 m) | |||
| 8. | Cable material | P | PVC cable up to max. 105 °C | |
| S | silicone cable up to max. 200 °C (standard) | |||
| T | Teflon cable up to max. 250 °C | |||
| G | glass silk cable up to max. 400 °C |
